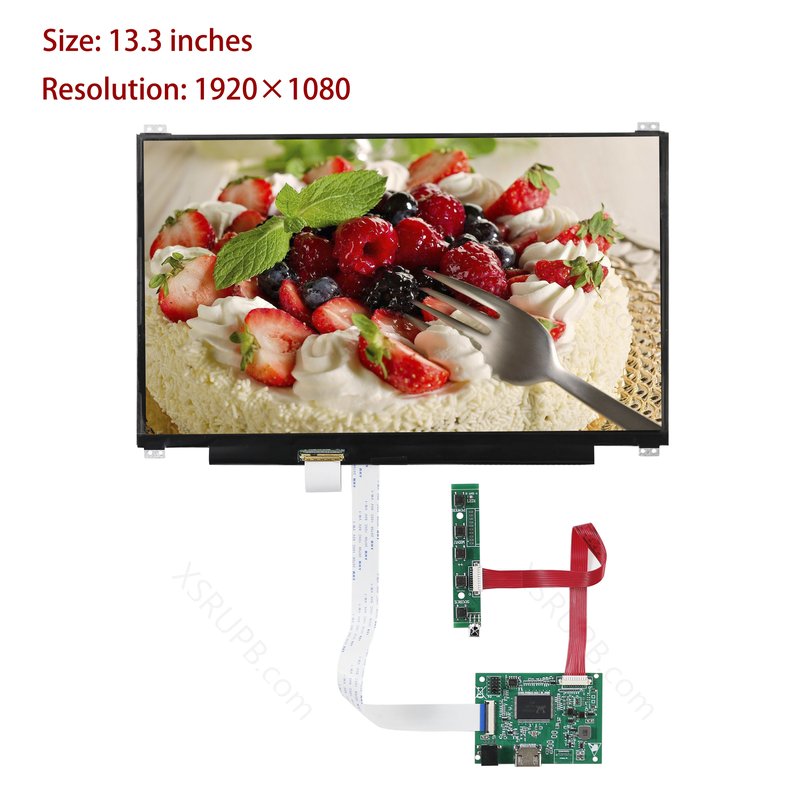

Upgrade your DIY display project with this 13.3-inch Full HD eDP LCD panel kit featuring a 1920×1080 resolution and HDMI-compatible controller board. Designed for makers, embedded systems, mini PCs, and industrial applications, this display kit supports popular SBC platforms including Raspberry Pi, LattePanda, and Banana Pi.
The kit typically includes a slim IPS LCD panel, eDP driver board, HDMI input, power circuitry, and connecting cables for quick DIY integration. Suitable for portable monitors, smart home dashboards, retro gaming, industrial control systems, and secondary PC displays.
1: 1 HDMI signal input, and this IC supports HDMI1.4
2: support wide voltage input, and can work normally between 5V-20V, (but need to consider the voltage requirements of external equipment, so as not to damage the externally connected equipment or accessories, this working voltage is only applicable to this driver board)
3: standard backlight 6PIN, interface, external screen line definition
4: standard EDP-30PIN output, support resolution below 1920*1200
5: support HDMI upgrade or 4P standard IIC upgrade
6: standard HDMI large-port universal connector (high-grade gold-plated quality)
7: using high temperature components, can be used in high temperature environment for a long time, but need to pay attention to ventilation
8: support remote control function,
9: support multi-screen parameter selection, maximum support for the corresponding resolution of 10 kinds of LCD screen, no need to write another program (see the following specifications)
10: PCB uses FR4 material, 1.6MM thickness, super mechanical strength,
11: using our company's dedicated custom IC-HD3,
12: the positioning hole of the drive board is four, the positioning hole size is 3MM
13: do not need to update the driver, directly use the jump cap way, you can directly select a variety of resolution screen parameters, support multi-screen ginseng jumper selection, 1920 × 1200, 1920x1080, 1600 × 900, 1366 × 768, 1280 ×800, five common resolution LCD screens on the market,
14: support ten languages, English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Italian, Portuguese, Russian, true global use without borders
15: the menu can be rotated 360 degrees, suitable for all occasions
Packing list :
1× HDMI EDP LCD Controller board
1× Signal Cable
1× Keyboard With Cable
1× Remote Control
